| Brand Name : | AUO |
| Model Number : | M170ETN01.1 |
| Price : | Negotiable |
| Payment Terms : | T/T, T/T |
| Supply Ability : | 10pcs/time |
| Delivery Time : | 1-3workingdays |

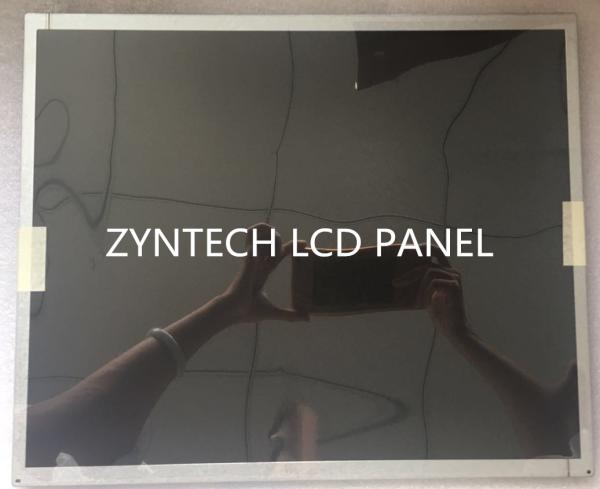

17inch AUO Monitor LCD PANEL for Desktop Monitor M170ETN01.1
It is used for Monitor ,Desktop application , size is 17inch, and View angle is 85/85/80/80
wide view angle , the backlight is WLED ,50K Hours without driver . the brightness is 250 cd/m² .
thedisplay supports the SXGA - 1280x 1024 screen format and 16.7M colors .
| Manufacturer | AUO | Model Namel | M170ETN01.1 |
| Screen Size | 17.0INCH | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 1280(RGB)×1024 (SXGA) | Response Time | 1/4(Typ.)(Tr/Td) ms |
| Active Area(mm) | 337.92 × 270.336 (H×V) | Arrangement | RGB Vertical Stripe |
| Bezel Area(mm) | 341.9 × 274.4 (H×V) | Outline(mm) | 358.5 × 296.5 × 11 (H×V×D) |
| Luminance | 250 cd/m² (Typ.) | Treatment | Antiglare , Hard coating (3H) |
| Viewing Angle | 85/85/80/80(Min.)(CR≥10 | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Good View at | 6 o'clock | Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% (CIE1931) | Signal Type | LVDS (2 ch, 8-bit) , Connector , 30 pins |
| Frame Rate | 60Hz | Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | Backlight | WLED, 30K hours , No Driver |
| Used for | Monitor , Desktop ;Industrial application | Touch screen | without |
1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .
2. Ship parts from shenzhen or HK .
3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.
4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.
5. FQA :
PAYMENT : T/T ,Western union
Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.
Delivery time : 1-3 working days upon payment.
Quality Assurance of Display Panel
Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.
The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.
Even if within the warranty period, if the following occurs, the repair service is not available.
1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.
2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.
3. The product malfunction caused by the fall and transportation failures after purchase.
4. The malfunction and damaged caused by the other barriers (man-made factors or external device).
Any problems in the after-sales service, please contact our agents or us directly.
|
|
